Switch SIM Card

Many of our OutdoorRouter models, including the EZR23(T), EZR33(L/T), and EZR34(T), have dual SIM card slots. By default, the router uses SIM card #1 as the primary card. The two SIM card slots are connected to the same 4G/5G modem. Only one SIM can be active at a time.

Active SIM Card

Check SIM Status

To check which SIM card is currently active, go to the "Device" section on the right side of the homepage or navigate to "Network > Mobile." The interface will indicate whether SIM 1 or SIM 2 is in use.

Change Active SIM

To change the active SIM card:

  1. Go to "Network > Mobile" and select "Edit."

  2. Under the "General Setup" tab, choose either "Primary SIM 1" or "Secondary SIM 2" from the "Active SIM Card" drop-down menu.

  3. Click "Save & Apply" at the bottom of the page to confirm the change.

The router will switch to using the newly selected SIM card. No need to reboot the router. It takes a few minutes to redial for mobile connection through the new SIM card.

Auto Switch SIM

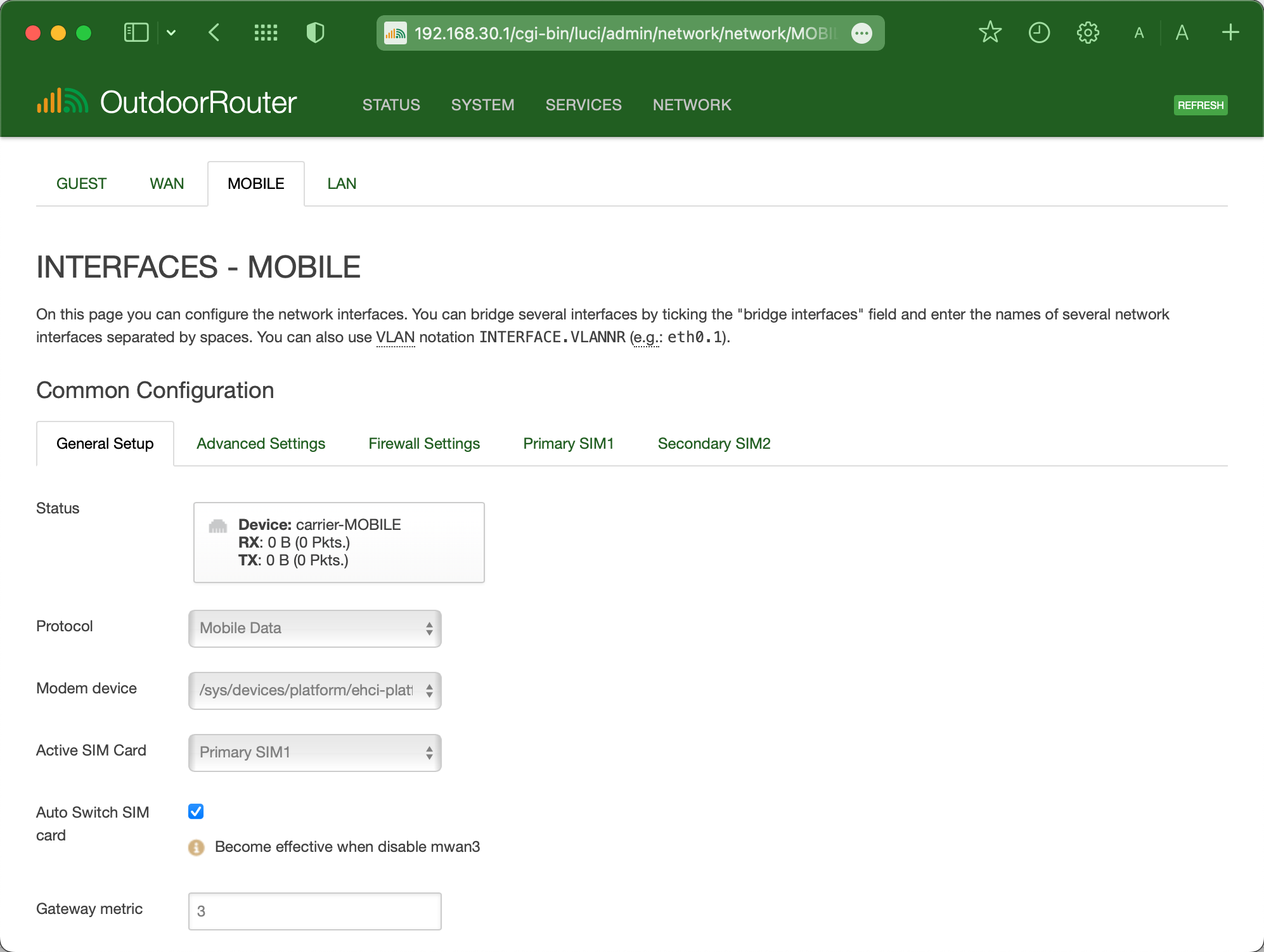

If you are in an area with uneven cell signal coverage and need reliable internet, use the secondary SIM slot to insert a SIM card from another carrier. Go to "Network > Mobile: Edit" and enable the "Auto Switch SIM Card" function.

When enabled, the Mobile-Watchdog will continuously check the active SIM's internet status. If the watchdog detects the active SIM is offline, the router will automatically switch to the secondary SIM for failover connectivity. This ensures the router maintains internet access even if a carrier's intermittent signal.

The auto-switch function provides seamless cellular connectivity failover using dual SIMs from different carriers.
